Master Cylinder, Brake [2017, B4204T23; B4204T27, TG-81SC; TG-81SC AWD]: Removal
Removal steps in this procedure may contain installation details.
Follow instructions about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM
Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD
Remove reservoir brake fluid, refer to: RESERVOIR, BRAKE FLUID

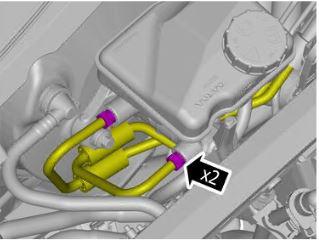

Be prepared to collect escaping fluid.
Make sure that all openings are sealed.
Torque: Ø8 mm diameter brake line, 18Nm
CARS WITH MANUAL TRANSMISSIONS
Be prepared to collect escaping fluid.
Make sure that all openings are sealed.

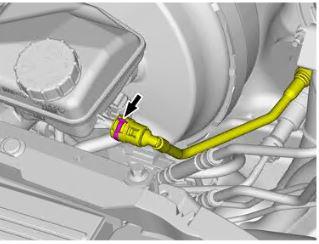

Release the lock.
Undo the hose from the connection.
ALL VEHICLES

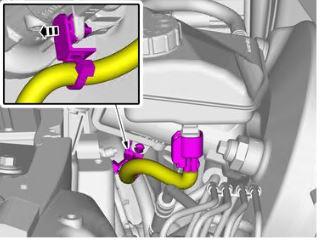

Disconnect the connector.
Loosen the clip.
Make sure that new nuts are installed.
Torque:Master cylinder, to Brake booster, 24 Nm
Remove the nuts.
Remove the marked part.
