Front Brake Flexible Hose [2017]: Installation
To install, reverse the removal procedure.
WARNING:
Make sure that the brake hose is not twisted and is correctly located.
VEHICLES WITH 18 INCH BRAKES
CAUTION:

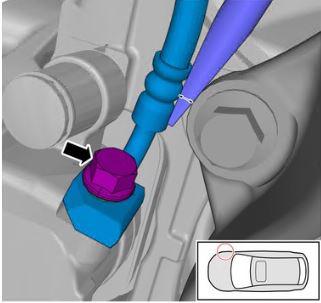

Make sure to place the component as the graphic shows.
Hint: Use a screwdriver.
Tighten the screw.
Torque:Brake hose (screw) to brake caliper, 40 Nm
Perform bleeding air brake system, refer to: BRAKE SYSTEM BLEEDING
