Brake System Bleeding [2016-2018]
NOTE:
For information on Volvo color coded illustrations, refer to: IMAGES
| Materials | |
|---|---|
| Designation | Part number |
| Brake fluid | 9437430 |
BLEEDING
NOTE:
Always follow the manufacturer's instructions when handling the equipment.
Use: Air bleeding equipment
Use: Brake fluid, 9437430

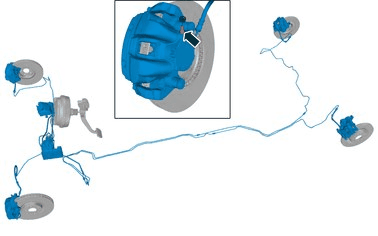

Torque: Nipple bleeding brake system, 10Nm
NOTE:

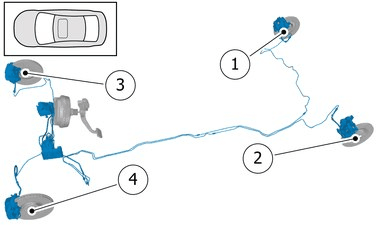

Make sure to follow the sequence indicated.
