Vacuum Pump, Brake Booster [2016, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

CAUTION:

Make sure that all openings are sealed.

Fold marked part aside.

Remove the fuel pump, refer to: FUEL PUMP

Courtesy of VOLVO CARS CORPORATION

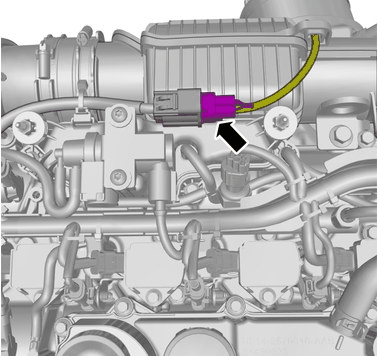

Release the lock.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

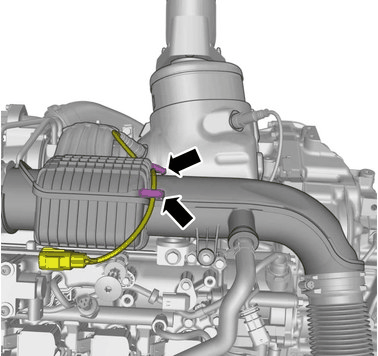

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

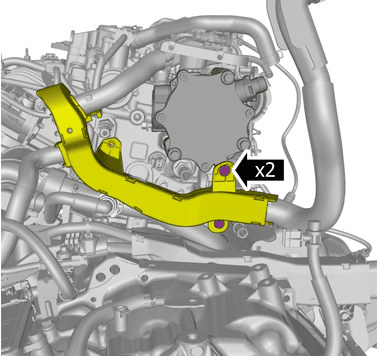

Remove the screws.

Torque: M6, 10Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

CAUTION:

This component is sensitive to "mechanical stresses". If the component has been dropped onto the floor, for example, it must not be installed in a vehicle.

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.
