Master Cylinder, Brake [2017-2018 | 2016, B4204T11; B5254T12, TG-81SC; TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
See information about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM
Remove the following items:
- battery, refer to: BATTERY
- Reservoir, brake fluid, refer to: RESERVOIR, BRAKE FLUID
- plenum cover, refer to: PLENUM COVER

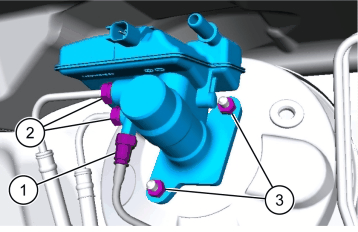

Torque: M6, 10Nm
CAUTION:
Make sure that all openings are sealed.
NOTE:
Make sure that the seal is correctly located.
- Torque: Ø8 mm diameter brake line, 18Nm
- Torque: Ø8 mm diameter brake line, 18Nm
- Torque: M8, 24Nm
