Brake Booster [2016 | 2017-2018, B4204T11]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Torque: M8, 24Nm

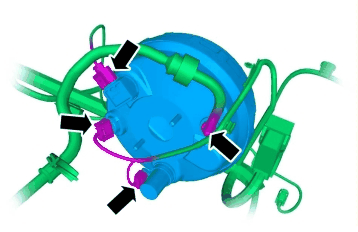

Remove master cylinder brake, refer to: MASTER CYLINDER, BRAKE
Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD
Torque: M6, 10Nm
CAUTION:
Make sure that the brake booster push rod is correctly located.
