Transmission Valve Housing [2018, TG-81SC AWD]: Removal

Disconnect Transmission Control Unit Wiring Harness, refer to: TRANSMISSION CONTROL UNIT WIRING HARNESS

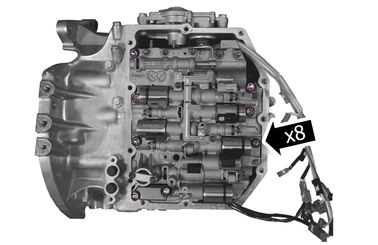

GLL1008069Courtesy of VOLVO CARS CORPORATION
NOTE:

Note the different lengths of the bolts.

Remove the screws.

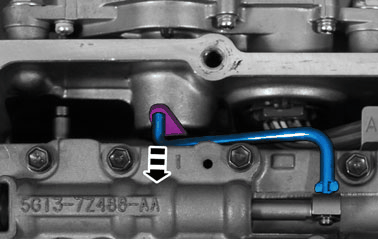

GLL171758Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.
