Transmission Electric Oil Pump [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove cover control system, refer to: COVER, CONTROL SYSTEM

GLL1016320Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

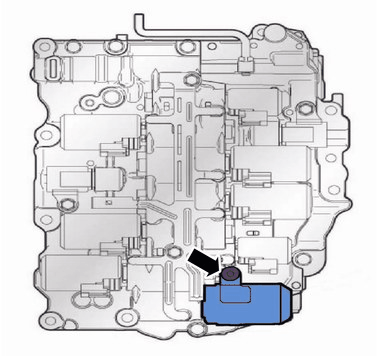

GLL1026560Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the part carefully

Torque:  M5, 5Nm
