Transmission Cover, Control System [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Drain oil transmission, refer to: TRANSAXLE OIL

Courtesy of VOLVO CARS CORPORATION

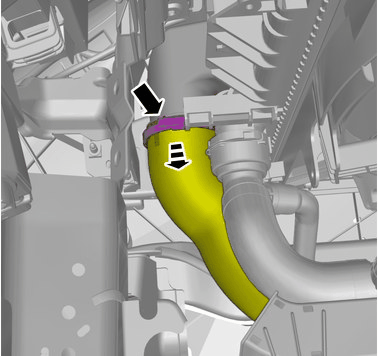

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

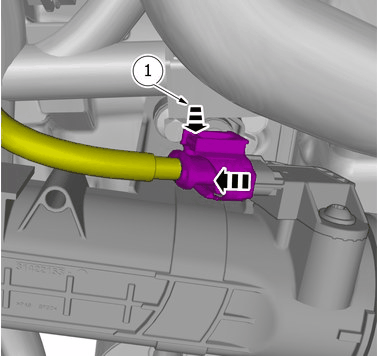

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

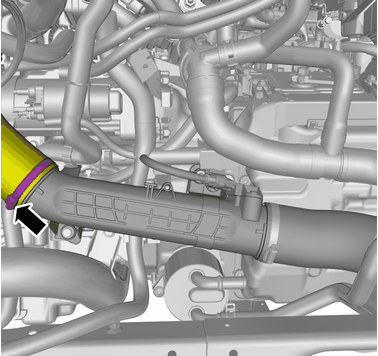

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

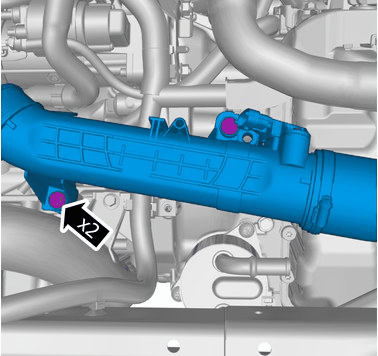

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

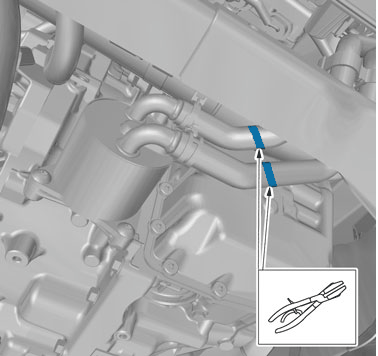

WARNING:

Be prepared to collect escaping fluid.

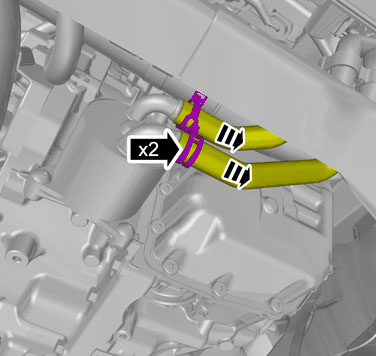

Loosen the hose clamps.

Undo the hoses from the connections.

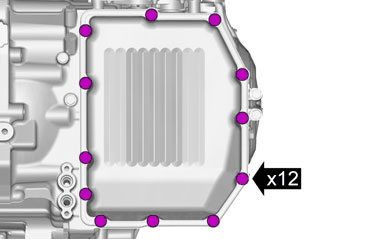

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Torque: Cover, control system, 13Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the component is clean, free of foreign material and lubricant.

Use: Cleaning agent, 1161721

Loosen the marked detail/details.
