Transfer Case Vent [2017-2018, TG-81SC AWD]: Removal

Remove bevel gear, refer to: BEVEL GEAR

Courtesy of VOLVO CARS CORPORATION

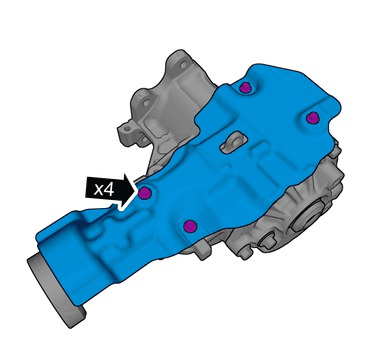

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

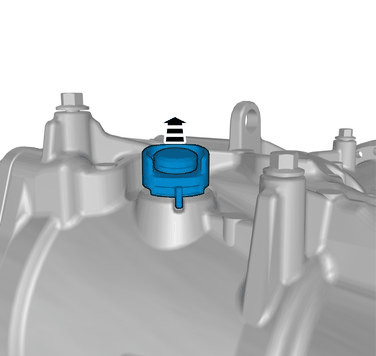

Remove the marked part.
