Transfer Case Vent [2017-2018, TG-81SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

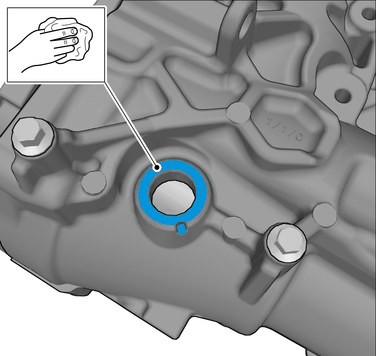

CAUTION:

Make sure that the surface is clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

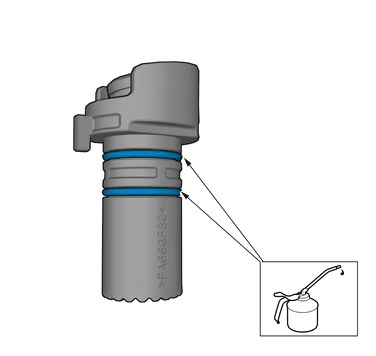

Lubricate the O-ring.

Use: Transmission oil, 31259380

Courtesy of VOLVO CARS CORPORATION

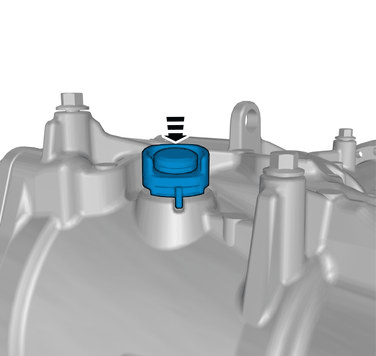

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Install bevel gear, refer to: BEVEL GEAR
