Transfer Case Vent [2016, TF-80SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

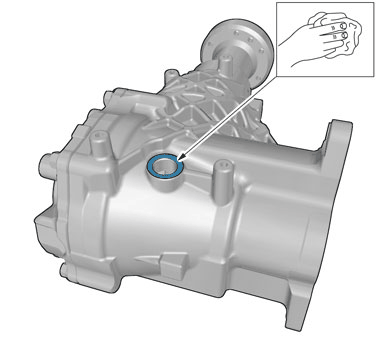

CAUTION:

Make sure that the surface is clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

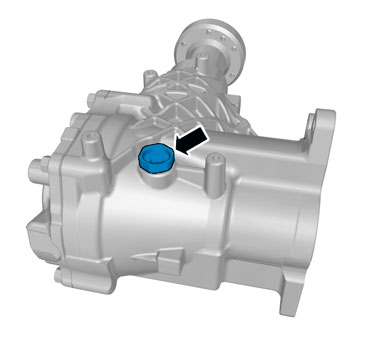

NOTE:

Make sure that a new component is installed.

Torque: Transfer Case vent to Transfer Case, 6Nm

Courtesy of VOLVO CARS CORPORATION

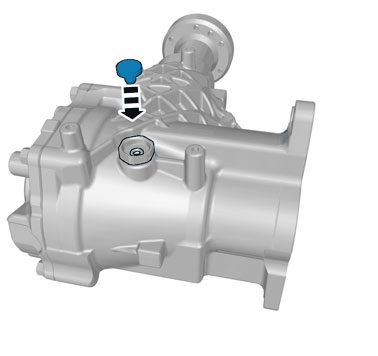

NOTE:

Make sure that a new component is installed.

Install bevel gear, refer to: BEVEL GEAR
