Transfer Case Seal RH [2016, B5254T12, TF-80SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

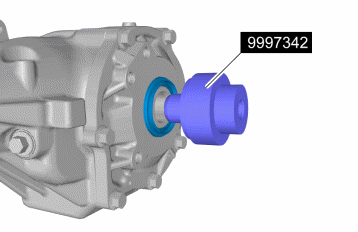

Special Tool: 999 7342

Use:  Plastic mallet

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5763

Use:  Plastic mallet

To install, reverse the removal procedure.

Perform oil level bevel gear, check, refer to: OIL LEVEL BEVEL GEAR, CHECKING
