Transfer Case Rear Seal [2017-2018, B4204T11, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the propeller shaft, refer to: PROPELLER SHAFT
NOTE:

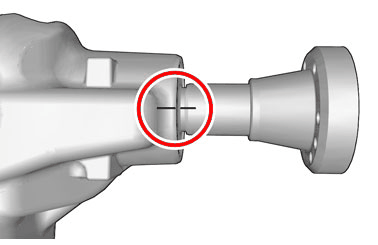

Note the position of the component before removal.
Remove the nut.
Special Tool: 999 7058 and Special Tool: 999 5652
Torque: Flange to bevel gear, 38Nm
Install the screws.
Torque: M8, 24Nm
Remove the marked part.
Remove the marked part.
