Transfer Case Rear Seal [2017-2018, B4204T11, TG-81SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

CAUTION:

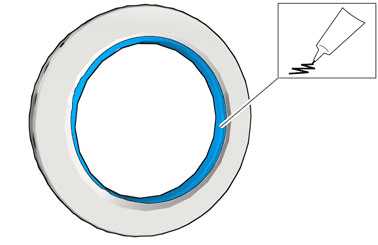

Only use the specified material to lubricate the seals.

Use: Wheel bearing grease, 1161689

Courtesy of VOLVO CARS CORPORATION

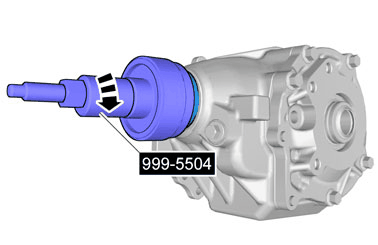

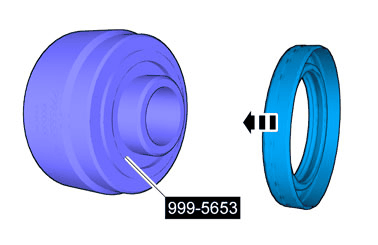

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

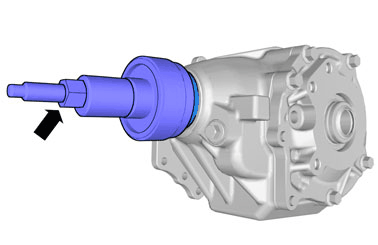

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the Special Tool.

To install, reverse the removal procedure.

Install the propeller shaft, refer to: PROPELLER SHAFT

Perform oil level bevel gear, check, refer to: OIL LEVEL BEVEL GEAR, CHECKING
