Transfer Case Rear Seal [2016, B5254T12, TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Loosen front propeller shaft joint, refer to: PROPELLER SHAFT
Torque: Flange to bevel gear, 38Nm

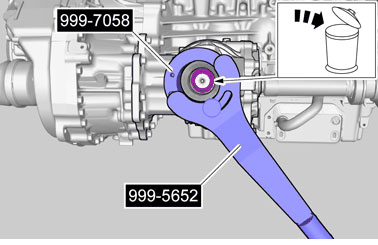

Special Tool: 999 7058 and Special Tool: 999 5652
WARNING:
Be prepared to collect escaping fluid.
