Transaxle Oil [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that tools and equipment are clean, free of foreign material and lubricant.

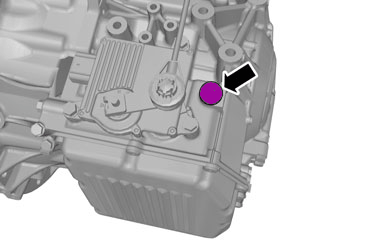

Remove the screw.

Torque: Oil filler plug, gearbox, 35Nm

Courtesy of VOLVO CARS CORPORATION

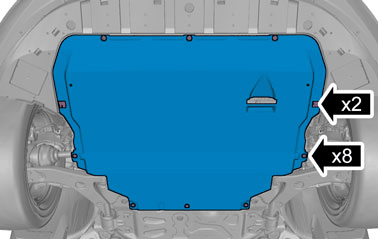

Remove the screws.

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

WARNING:

Hot fluid.

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

WARNING:

Hot fluid.

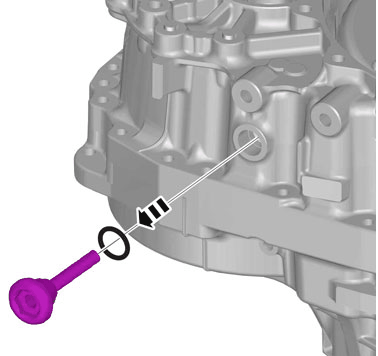

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

WARNING:

Hot fluid.

CAUTION:

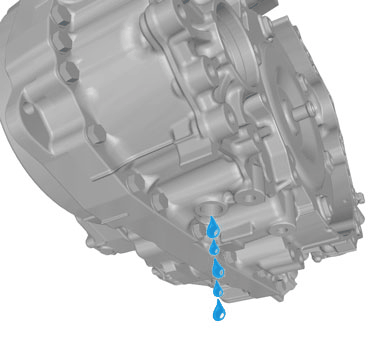

The fluid must be allowed to escape until a continuous flow changes into single drops.

Courtesy of VOLVO CARS CORPORATION

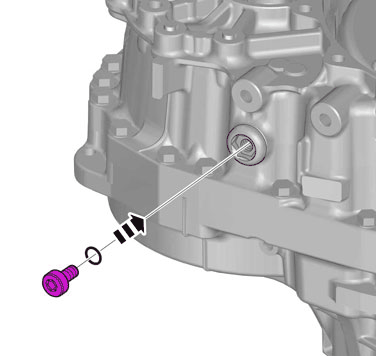

Install the screw.

Torque: Oil drain plug, gearbox, 35Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Oil level plug, transmission, 8Nm

Courtesy of VOLVO CARS CORPORATION

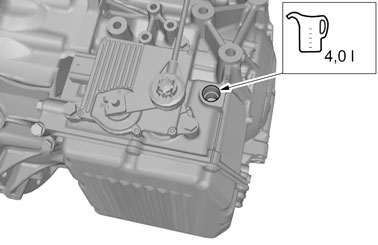

Follow the instructions regarding transmission lubricant, refer to: LUBRICANT TRANSMISSION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Carry out: gearbox oil level - check, refer to: TRANSMISSION OIL LEVEL - CHECKING
