Solenoid Gear Selector Assembly [2016, TF-80SC AWD | 2017-2018, B4204T11, TG-81SC AWD]: Removal

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

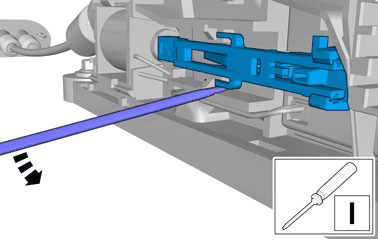

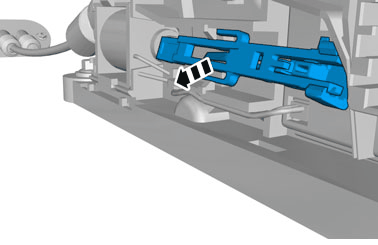

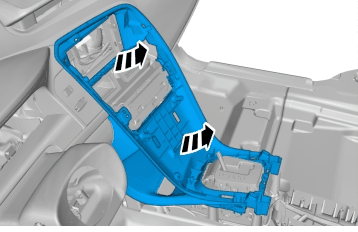

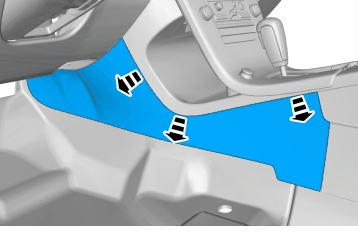

Remove the panel.

On both sides.

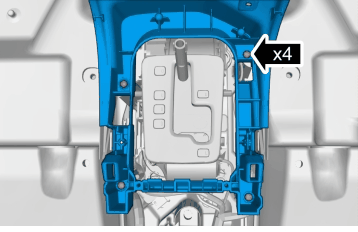

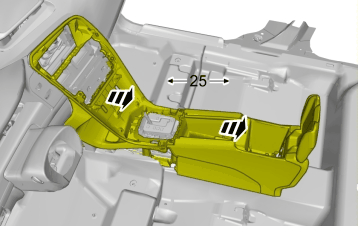

Remove center console, refer to: CENTER CONSOLE

Courtesy of VOLVO CARS CORPORATION

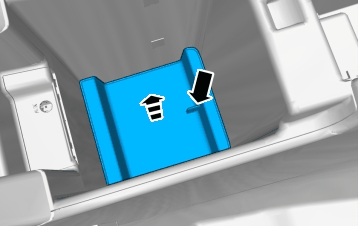

Remove cup holder floor console, refer to: FLOOR CONSOLE CUP HOLDER

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

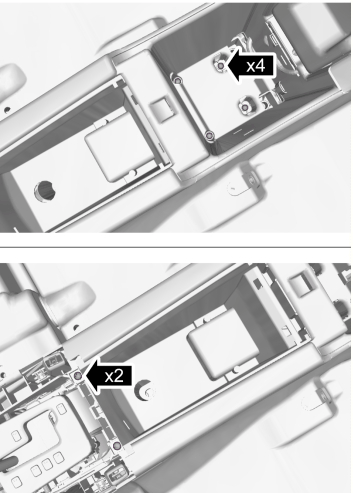

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

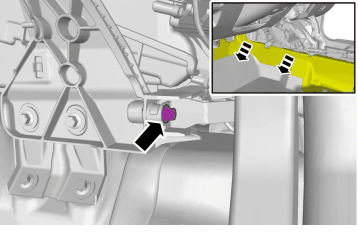

Torque:  M8, 24Nm

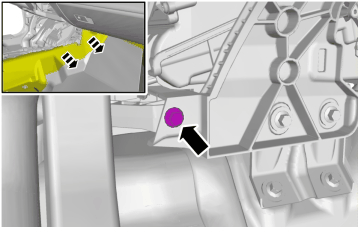

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

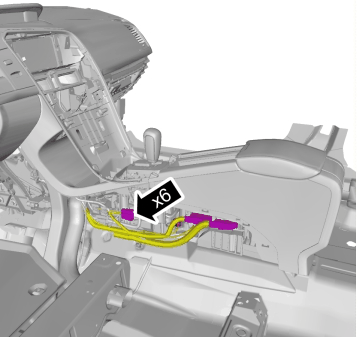

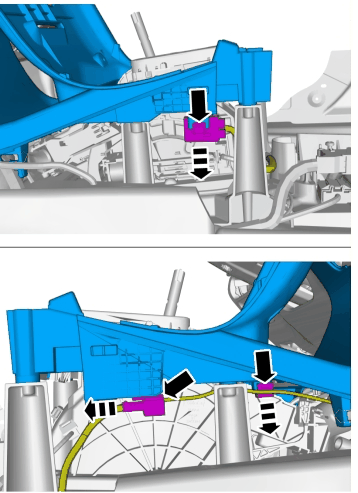

Disconnect the connectors.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

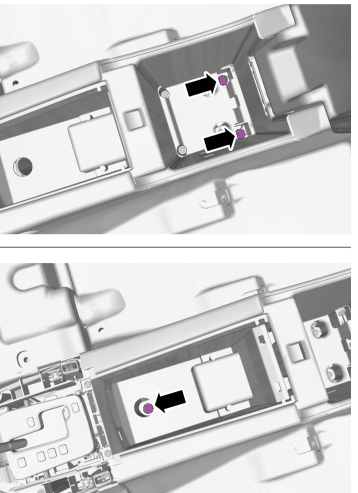

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

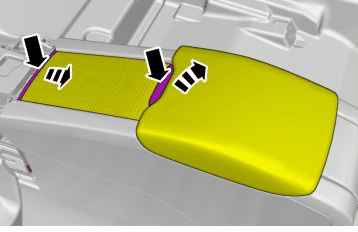

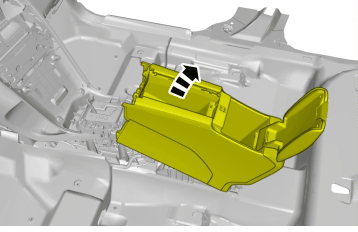

Remove cover/center armrest, refer to: COVER/ARMREST TUNNEL COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

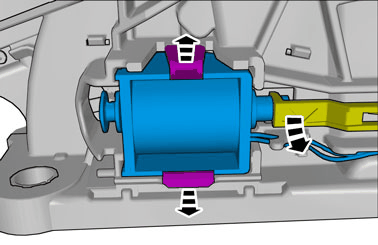

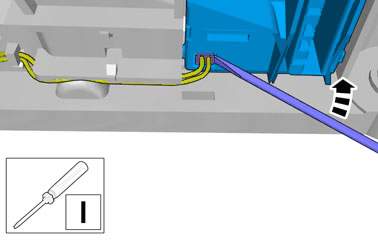

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

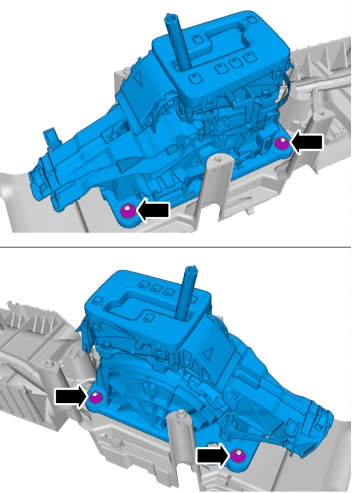

Loosen the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION
