Solenoid Gear Lever Assembly [2017, B4204T11, TG-81SC AWD]: Removal

Remove floor console, refer to: FLOOR CONSOLE

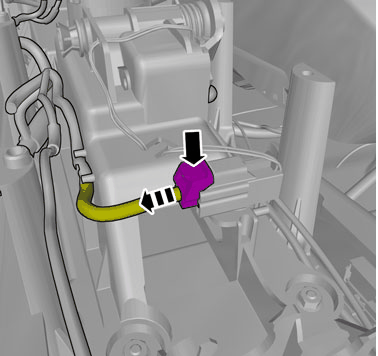

GLL1025616

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

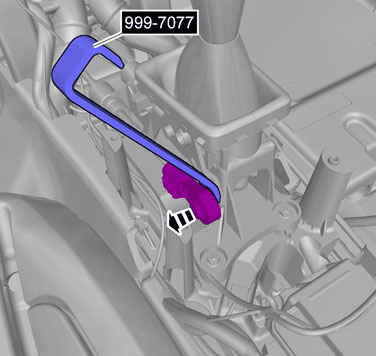

GLL1040595

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7077

Release the gearshift cable.

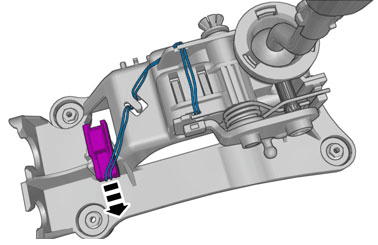

GLL1007494

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

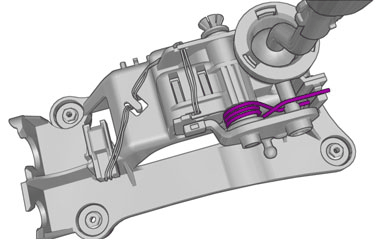

GLL1008965

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

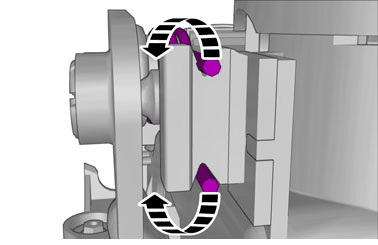

GLL1034326

Courtesy of VOLVO CARS CORPORATION

Release the catches.

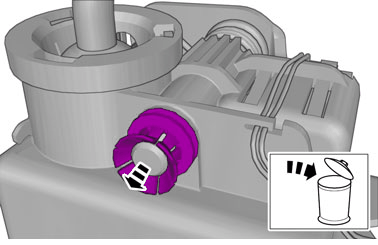

GLL1010937

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

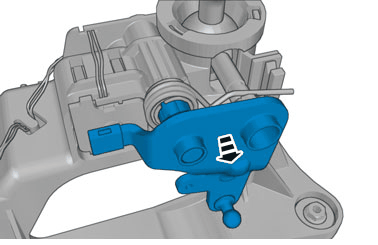

GLL1011526

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

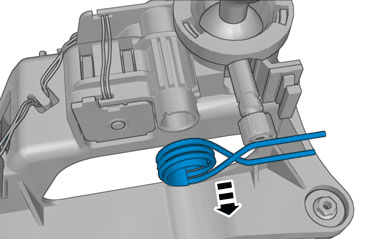

GLL1018437

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

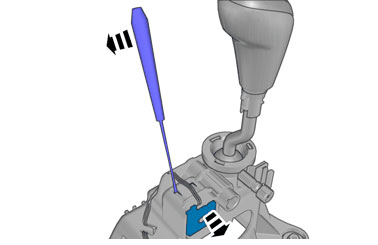

GLL1002206

Courtesy of VOLVO CARS CORPORATION

Release the locks.
