Selector Lever Assembly [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove floor console, refer to: FLOOR CONSOLE

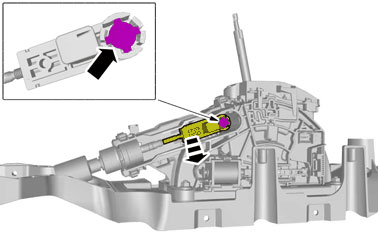

Courtesy of VOLVO CARS CORPORATION

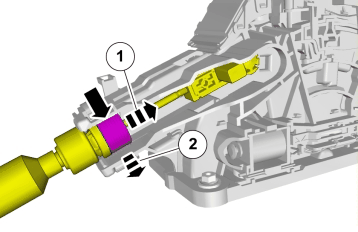

Courtesy of VOLVO CARS CORPORATION

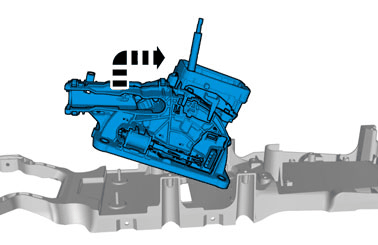

Courtesy of VOLVO CARS CORPORATION

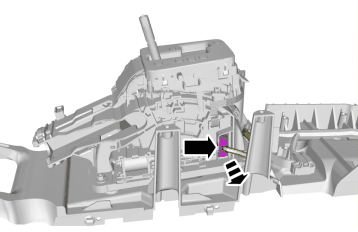

Courtesy of VOLVO CARS CORPORATION

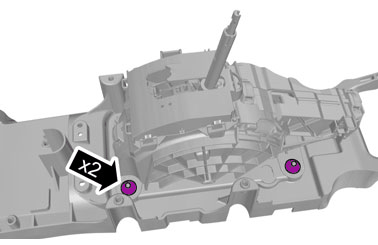

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

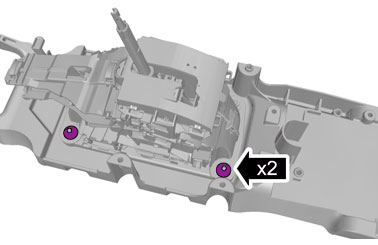

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION
