Sealing Ring, Torque Converter [2016, B5254T12, TF-80SC AWD]: Removal

Remove transmission, refer to: TRANSMISSION

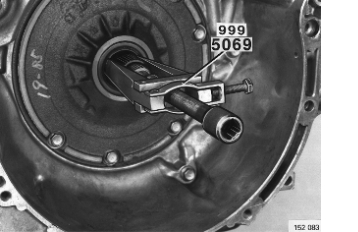

GLL108695Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5069

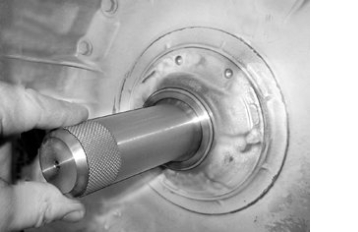

GLL150169Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7184
