Removal And Installation

REMOVAL

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Check for correct operation after the installation.

VEHICLES WITH LIGHTING IN THE GEAR SELECTOR LEVER KNOB.

Remove center console, refer to: CENTER CONSOLE

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

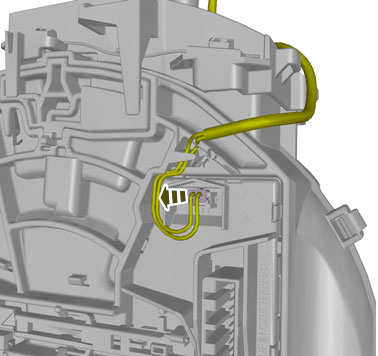

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

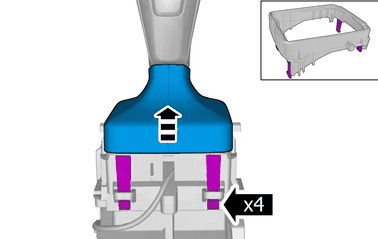

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

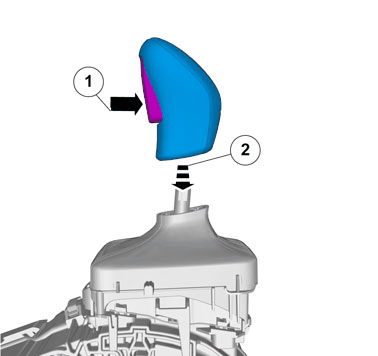

CAUTION:

Pull carefully.

Release the catches.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.
