Gear Selector Cable [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Remove the following items:

• air cleaner (ACL) housing, refer to: AIR CLEANER HOUSING
• battery, refer to: BATTERY

Courtesy of VOLVO CARS CORPORATION

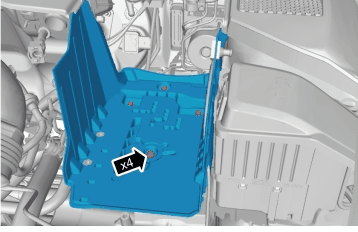

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

• Floor console, refer to: FLOOR CONSOLE
• General audio player module, refer to: GENERAL AUDIO PLAYER MODULE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
