Bevel Gear [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove front subframe, service position, refer to: FRONT SUBFRAME, SERVICE POSITION

Remove the propeller shaft, refer to: PROPELLER SHAFT

Remove the catalytic converter, refer to: CATALYTIC CONVERTER

Courtesy of VOLVO CARS CORPORATION

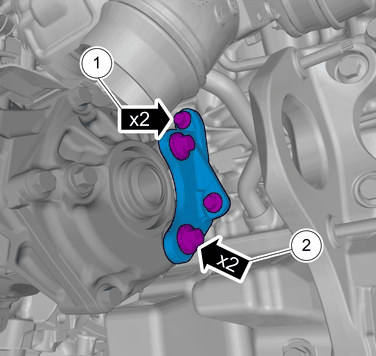

Remove the screws.

Remove the marked part.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not loosen the bolts more than 2 turns.

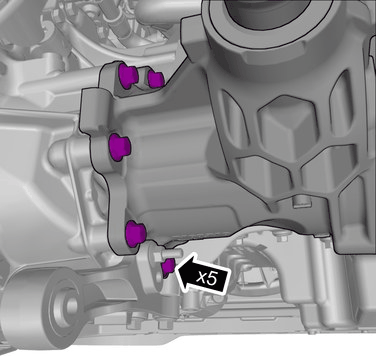

Loosen the screws.

Torque: Bevel gear to transmission, 75Nm

Remove the right drive shaft, refer to: DRIVE SHAFT RIGHT

Courtesy of VOLVO CARS CORPORATION

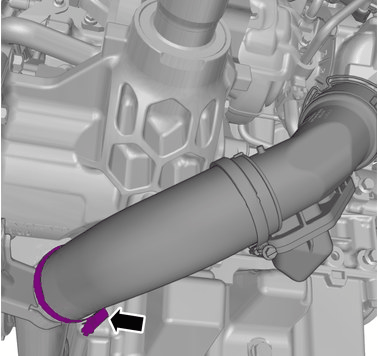

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

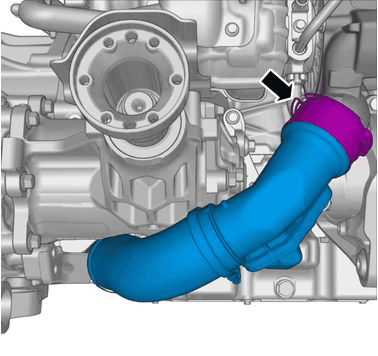

Release the lock.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is clean and free of foreign material.

NOTE:

Make sure that the seal is correctly located.

Courtesy of VOLVO CARS CORPORATION

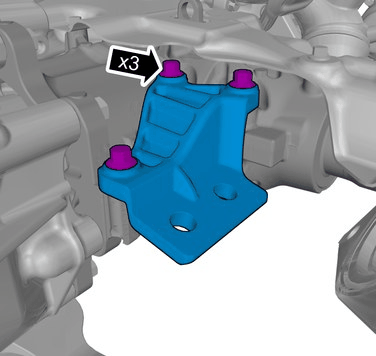

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

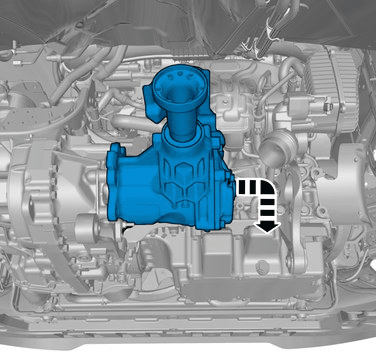

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step is only necessary when installing a new component.

Remove the screws.

Torque: M6, 10Nm
