Bevel Gear [2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Loosen the hose clamp.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove Engine Rear Lower Support Insulator LH, refer to: ENGINE REAR LOWER SUPPORT INSULATOR LH

Courtesy of VOLVO CARS CORPORATION

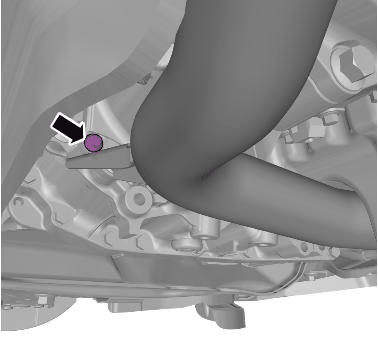

Remove the screw.

Torque: M8, 24Nm

Loosen front propeller shaft joint, refer to: PROPELLER SHAFT

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not loosen the bolts more than 2 turns.

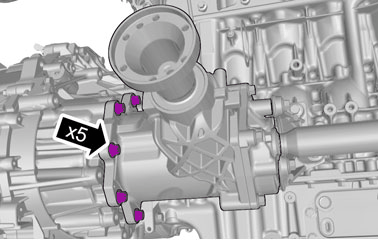

Loosen the screws.

Torque: Bevel gear to transmission, 75Nm

Remove the right drive shaft, refer to: DRIVE SHAFT RIGHT

Courtesy of VOLVO CARS CORPORATION

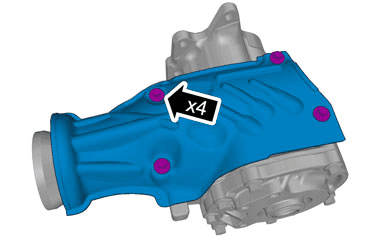

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step is only necessary when installing a new component.

Remove the screws.

Torque: M6, 10Nm
