Bevel Gear Sealing Ring [2017-2018, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove bevel gear, refer to: BEVEL GEAR

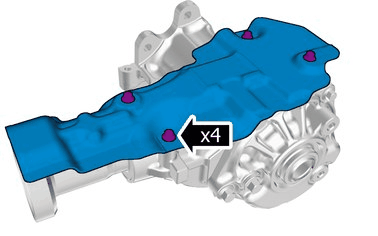

Loosen the screws.
Torque: M6, 10Nm

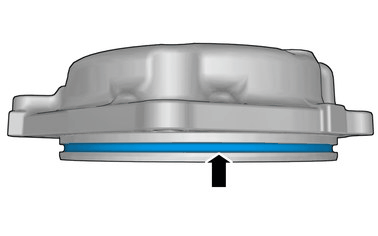

NOTE:
Use a new seal.
Remove the marked part.

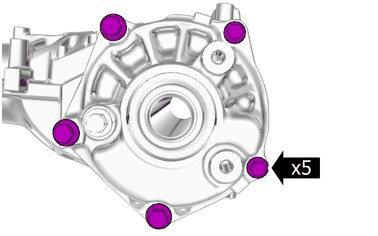

Loosen the screws.
-
Torque:Cover plate, to Bevel gear (M8),
- Stage 1: 18Nm
- Stage 2: 90°
-
Torque:Cover plate, to Bevel gear (M10),
- Stage 1: 35Nm
- Stage 2: 76°

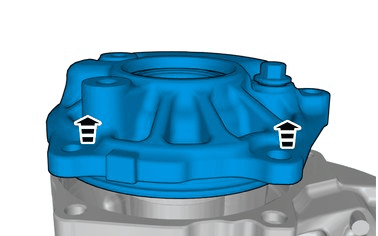

Remove the marked part.

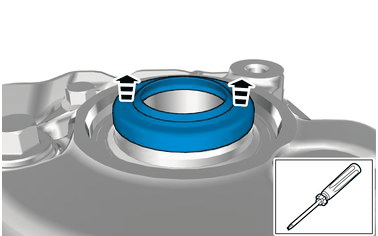

Remove the marked part.
CAUTION:
Make sure that the surface is clean and free of foreign material.

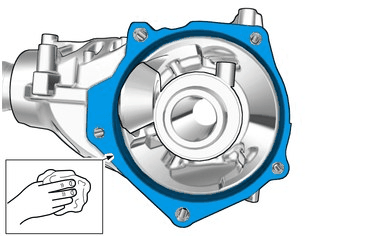

Clean the marked area.
NOTE:
Make sure that the mating faces are clean and free of foreign material.

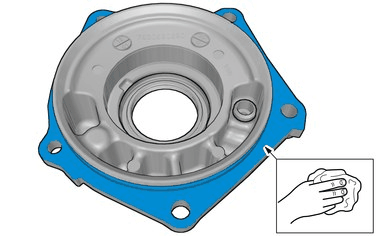

Clean the marked area.
