Removal And Installation

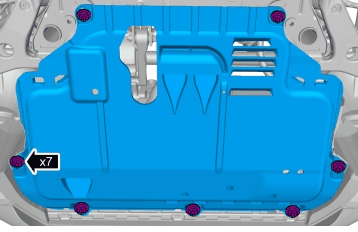

REMOVAL

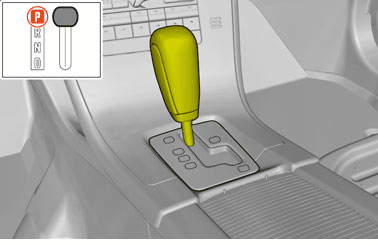

Check acc. to: DIAGNOSTICS/VEHICLE COMMUNICATION/Parameters/TCM/Oil temperature

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

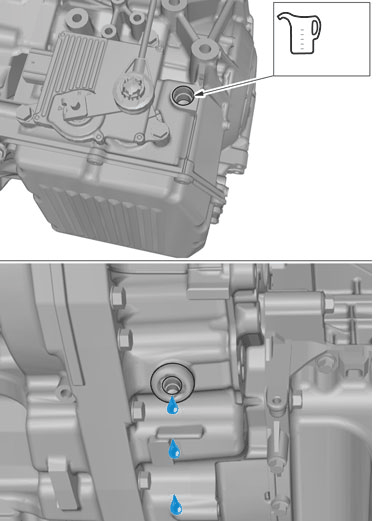

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

If transmission fluid escapes it is not an indication that the fluid level is correct.

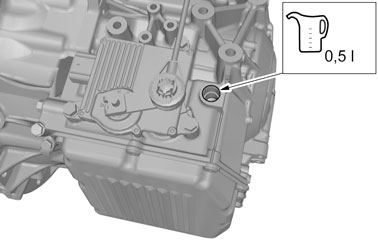

FILLING

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

See information about lubricants, transmission, refer to: LUBRICANT TRANSMISSION

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolt finger tight at this stage.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

See information about lubricants, transmission, refer to: LUBRICANT TRANSMISSION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Torque: Oil filler plug, gearbox, 35Nm

CHECK

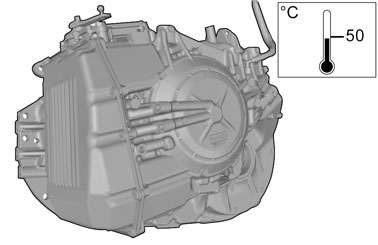

Courtesy of VOLVO CARS CORPORATION

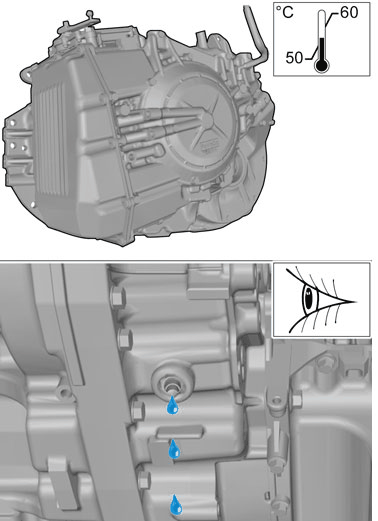

Read out the temperature of the gearbox oil: Diagnostics/Vehicle communication/Advanced/TCM/Parameter read out/Oil temperature

Courtesy of VOLVO CARS CORPORATION

WARNING:

Hot fluid.

WARNING:

Be prepared to collect escaping fluid.

Courtesy of VOLVO CARS CORPORATION

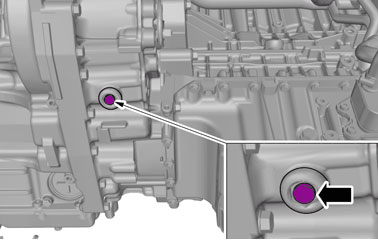

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Torque: Oil level plug, transmission, 8Nm

Courtesy of VOLVO CARS CORPORATION
