Oil Level Bevel Gear, Checking [2017-2018, TG-81SC AWD]: Installation

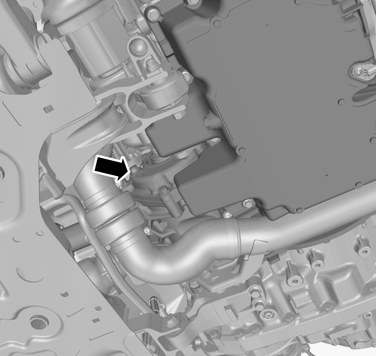

GLL1015230

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the screw.

Torque: Oil filler plug, bevel gear, 35Nm

GLL1010422

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Install the clip(s).
