Oil Level Bevel Gear, Checking [2016, B5254T12, TF-80SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

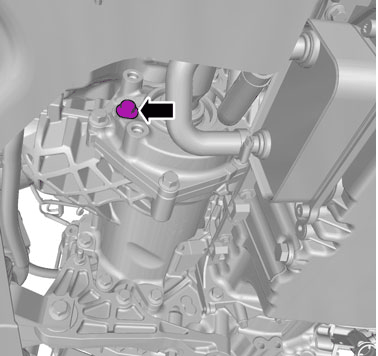

Torque: Oil filler plug, bevel gear, 35Nm

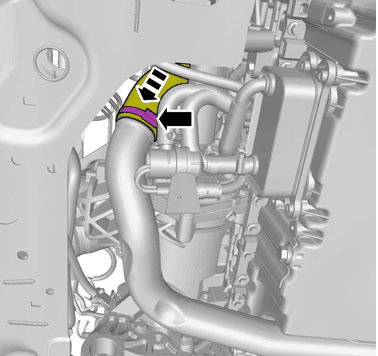

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

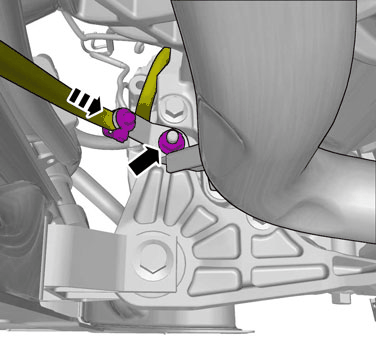

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

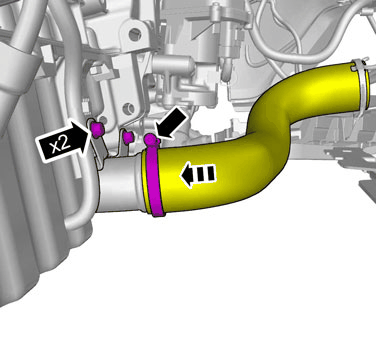

Torque: M8, 24Nm
