Input Shaft Seal [2016, TF-80SC AWD]: Removal

Courtesy of VOLVO CARS CORPORATION

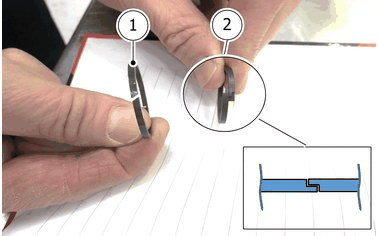

NOTE:

Make sure that the component is clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

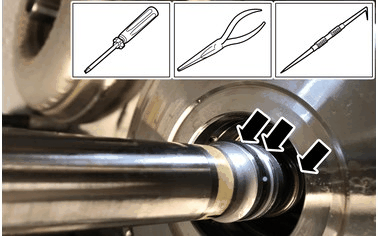

CAUTION:

The component must not be disassembled.

CAUTION:

Make sure that the component is held together as a unit without being split.

NOTE:

Make sure that no component falls off during removal.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

If the component needs to be removed temporarily, it must be placed on a level surface, on the lower part of the shaft.

Courtesy of VOLVO CARS CORPORATION
