Input Shaft Seal [2016, TF-80SC AWD]: Installation

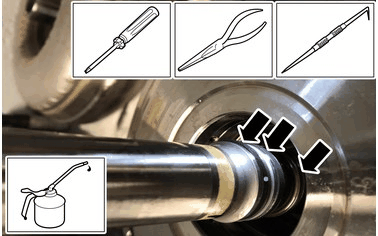

Only use the specified material to lubricate the seals.

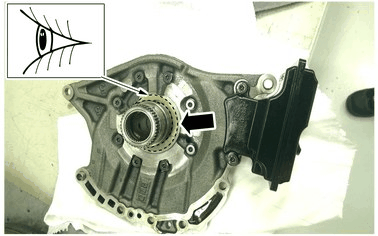

Make sure that the component is clean and free of foreign material.
Make sure that the seal is correctly located.
Use: Transmission oil, 31256774
Make sure that the components are positioned correctly.

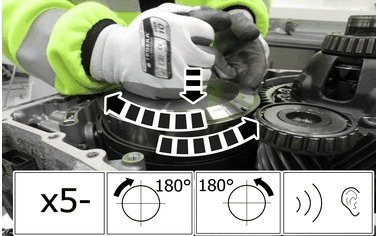

Make sure that the discs are parallel.
Make sure that the component is held together as a unit without being split.
Make sure that the component is centered.
Make sure that the washer is centered.
The graphic shows an incorrect design that needs correction.

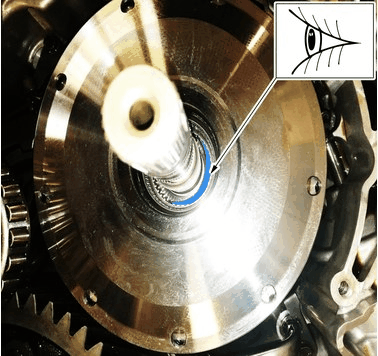

Make sure the component is fitted as illustrated.
Make sure that the component is held together as a unit without being split.
A click confirms that the component is in the correct position.

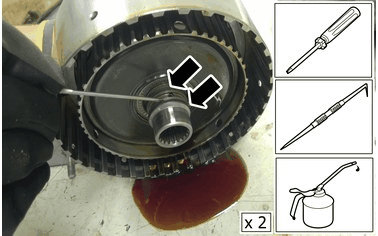

Make sure that this component is installed to the noted removal position.

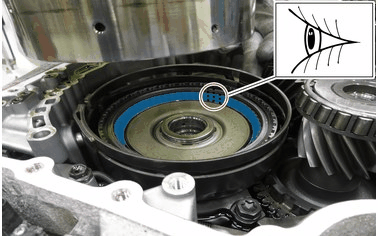

ORIENTATION VIEW
Only use the specified material to lubricate the seals.
Make sure that the component is clean and free of foreign material.
Make sure that the seal is correctly located.
Use: Transmission oil, 31256774

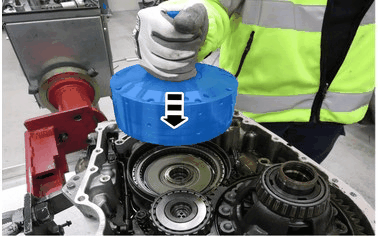

Make sure that the component is positioned correctly.

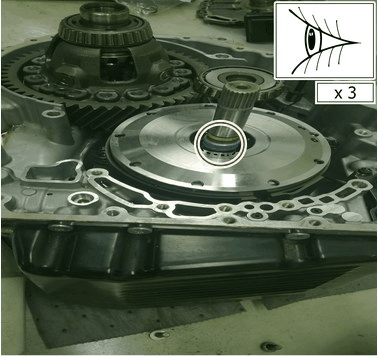

Make sure that the component is clean and free of foreign material.
Use new seals.
Vehicles with Start/Stop system uses all sealings in the kit.

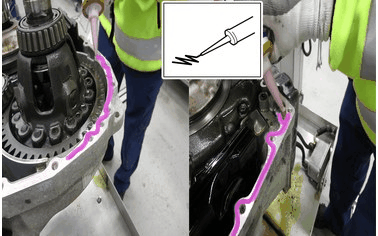

Use: Chemical gasket, 1161409
To install, reverse the removal procedure.
Reset according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/TCM/Resetting adaption
Vida/Diagnostics/Vehicle communication/TCM/Advanced/Adaptation of control module
