Rear Wheel Hub [2017-2018, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
WARNING:
Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.
NOTE:
Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.
Remove the wheel, refer to: WHEELS

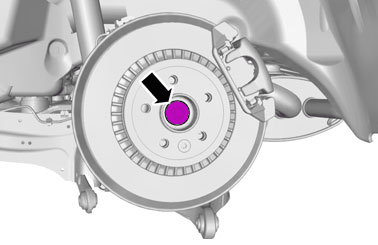

Torque:Driveshaft to wheel hub (rear),
- Stage 1: 35Nm
- Stage 2: 90°
WARNING:

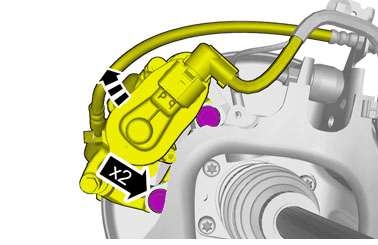

Make sure that no load is placed on the brake hose.
Torque: Mount rear brake caliper, 110Nm

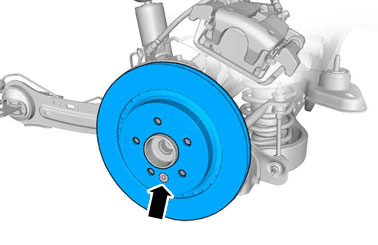

Torque: Rear brake disc to wheel hub, 35Nm

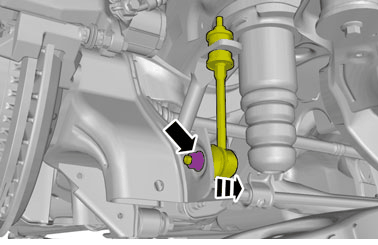

Torque: Rear stabilizer bar link to lower stabilizer bar, 55Nm

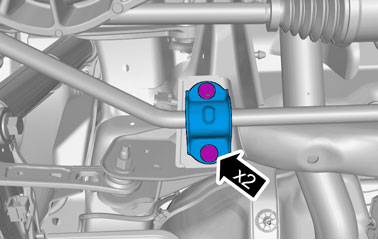

Torque: M10, 50Nm

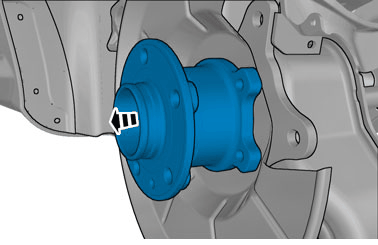

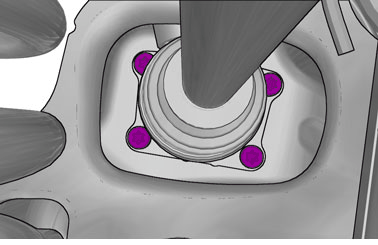

Torque: Wheel bearing rear to wheel knuckle, 110Nm
