Rear Stabilizer Bar [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

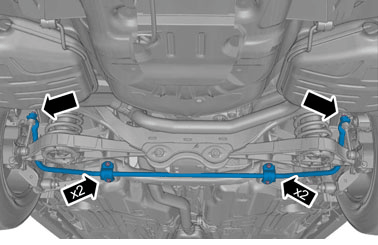

GLL181681Courtesy of VOLVO CARS CORPORATION
  1. Torque:  Rear stabilizer bar link to stabilizer bar, 15Nm
  2. Torque:  Anti-roll bar to rear sub-frame, 60Nm
