Rear Stabilizer Bar Link [2017-2018 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

CAUTION:

Make sure that the ball joint ball does not rotate.

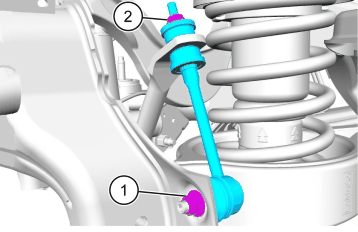

GLL155535Courtesy of VOLVO CARS CORPORATION
  1. Torque:  Rear stabilizer bar link to lower stabilizer bar, 55Nm
  2. Torque:  Rear stabilizer bar link to stabilizer bar, 15Nm
