Front Stabilizer Bar Link [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wheel, refer to: WHEELS

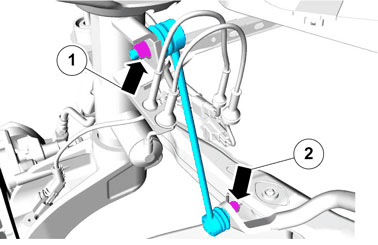

GLL1032867Courtesy of VOLVO CARS CORPORATION
  1. Torque:  Front stabilizer bar link to strut and spring assembly, 55Nm
  2. Torque:  Front stabilizer bar link to stabilizer bar, 70Nm
