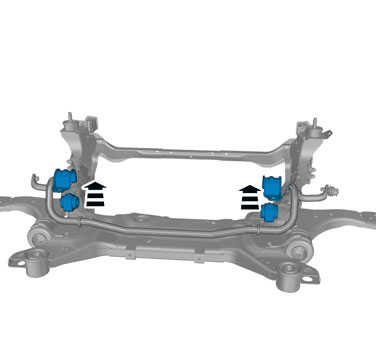

Front Stabilizer Bar Bushing [2017-2018 | 2016, B5254T12]: Removal

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

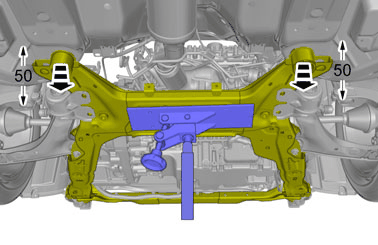

Use:  Unit lift

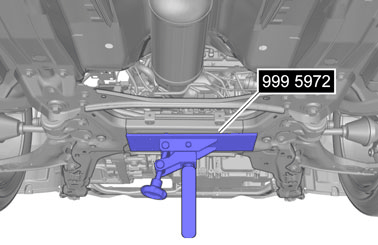

Special Tool: 999 5972

Courtesy of VOLVO CARS CORPORATION

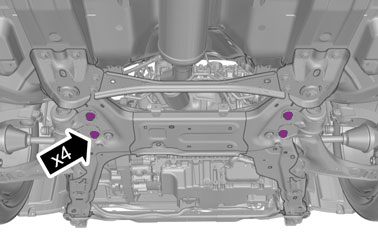

Torque:  Lower arm front to subframe (rear mounting), 175Nm

Courtesy of VOLVO CARS CORPORATION

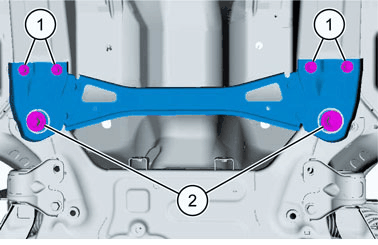

Remove the following items:

1. Torque:  M8, 24Nm

2. Torque:Subframe to chassis (Rear screws),

   • Stage 1: 150Nm
   • Stage 2: 90°

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
