Rear Spring [2017-2018, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Remove the wheel, refer to: WHEELS

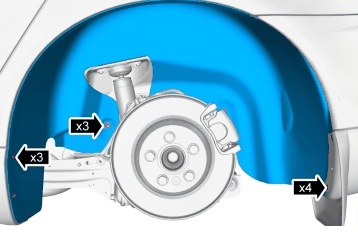

GLL158177Courtesy of VOLVO CARS CORPORATION

Remove link rear anti-roll bar, refer to: REAR STABILIZER BAR LINK

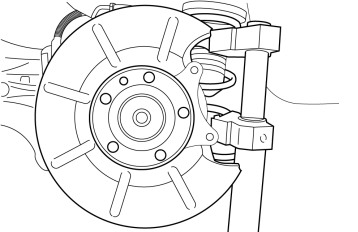

GLL154324Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2911  , Special Tool: 951 2937   and Special Tool: 951 2913

GLL153816Courtesy of VOLVO CARS CORPORATION
NOTE:

Note the position of each component before removal.
