Wheel Knuckle Rear [2017, TG-81SC AWD | 2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Remove the following items:

• Rear wheel hub, refer to: REAR WHEEL HUB
• the spring, refer to: SPRING

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

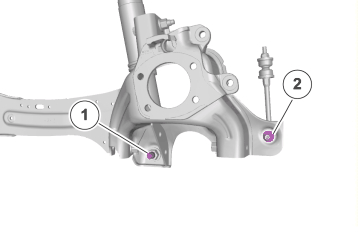

Remove the following items:

1. Torque:  Rear shock absorber to wheel knuckle, 175Nm
2. Torque:  Rear stabilizer bar link to lower stabilizer bar, 55Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  Rear Upper Control Arm to Longitudinal Stay, 130Nm

Courtesy of VOLVO CARS CORPORATION

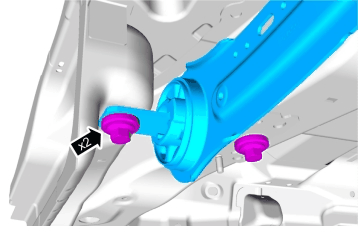

Torque:  Lower arm rear to wheel knuckle, 110Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  Wheel knuckle rear to body, 180Nm
