Track Rod [2016-2018]: Removal

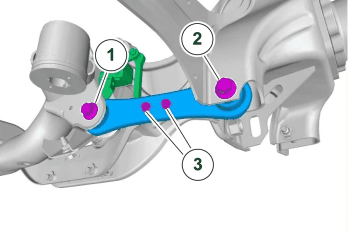

GLL155004Courtesy of VOLVO CARS CORPORATION

Remove the following items:

  1. Torque:  Tie rod to subframe, 130Nm
  2. Torque:  Tie rod to longitudinal stay, 130Nm
  3. Torque:  M6, 10Nm
