Rear Upper Arm [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the spring, refer to: SPRING .

Courtesy of VOLVO CARS CORPORATION

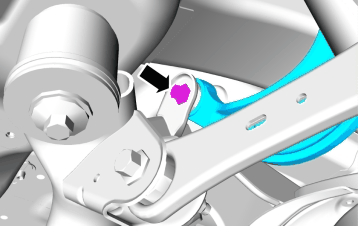

Torque: Rear Upper Control Arm to Longitudinal Stay, 130Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Upper arm rear to subframe, 130Nm
