Rear Suspension, Service Position [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove rear spring, refer to: SPRING

VEHICLES WITH LOAD-LEVELING SHOCK ABSORBERS

Courtesy of VOLVO CARS CORPORATION

Torque: Rear shock absorber to wheel knuckle (Nivomat), 280Nm

VEHICLES WITHOUT LOAD-LEVELING SHOCK ABSORBERS

Courtesy of VOLVO CARS CORPORATION

Torque: Rear shock absorber to wheel knuckle, 175Nm

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: Wheel knuckle rear to body, 180Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Activate service mode according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/PBM/Activating and service

Courtesy of VOLVO CARS CORPORATION

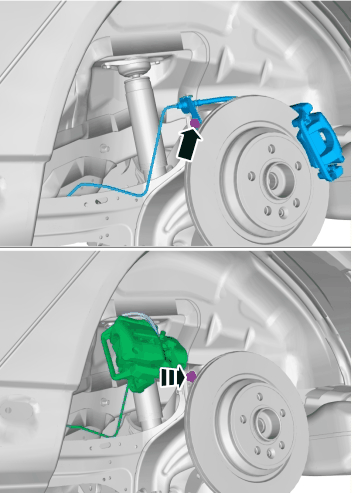

Torque: Mount rear brake caliper, 110Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Rear Upper Control Arm to Longitudinal Stay, 130Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of each component before removal.

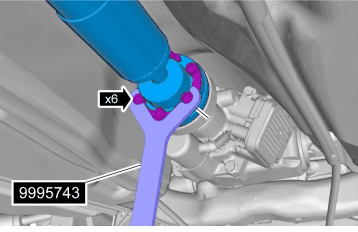

Torque:Prop shaft, CV joint,

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

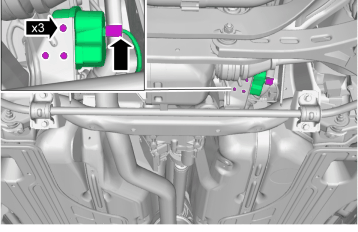

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

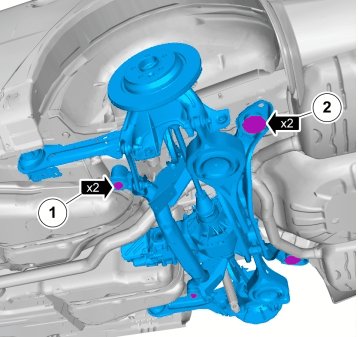

Tighten the bolts.

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

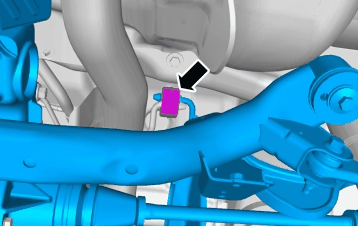

VEHICLES WITH PUMP, LEAKAGE DETECTION

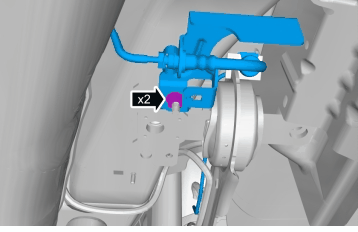

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

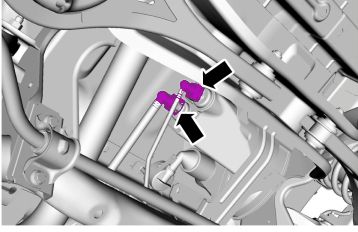

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that no components catch.

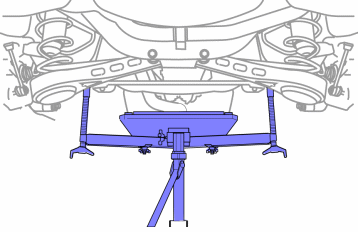

Use: Unit lift

Courtesy of VOLVO CARS CORPORATION

Remove the following items:
