Rear SUBFRAME [2017-2018, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Lower the rear end, refer to: REAR SUSPENSION, SERVICE POSITION

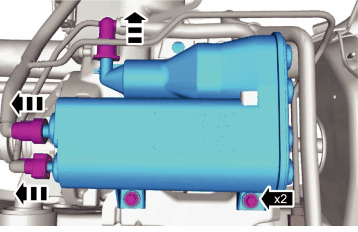

VEHICLES WITH CARBON FILTER CANISTER

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

APPLIES TO ALL VEHICLES.

Remove the drive shafts, refer to: REAR DRIVE AXLE

Courtesy of VOLVO CARS CORPORATION

Torque:  M12, 80Nm

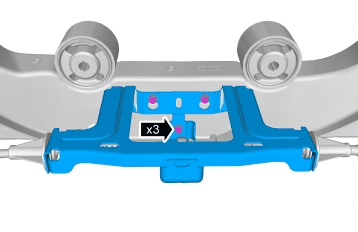

VEHICLES EQUIPPED WITH MECHANICAL PARKING BRAKE

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

APPLIES TO ALL VEHICLES.

Courtesy of VOLVO CARS CORPORATION

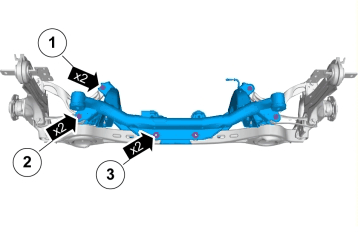

Remove the following items:

1. Torque:  Upper arm rear to subframe, 130Nm
2. Torque:  Tie rod to subframe, 130Nm
3. Torque:  Lower arm rear to subframe, 90Nm
