Rear Lower Arm [2016-2017 | 2018, B4204T11, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the spring, refer to: SPRING .
NOTE:
Only tighten the nut finger tight at this stage.

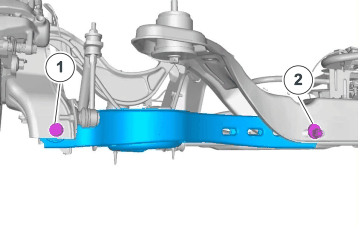

Remove the following items:
- Torque: Lower arm rear to wheel knuckle, 110Nm
- Torque: Lower arm rear to subframe, 90Nm
