Bushing Sub-Frame Rear [2017, TG-81SC AWD | 2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Installation

GLL1000750Courtesy of VOLVO CARS CORPORATION
GLL158888Courtesy of VOLVO CARS CORPORATION
GLL1016466Courtesy of VOLVO CARS CORPORATION
  1. Special Tool: 999 7306
  2. Special Tool: 999 7133
  3. Special Tool: 999 7054
  4. Special Tool: 951 2923
  5. Special Tool: 999 7039

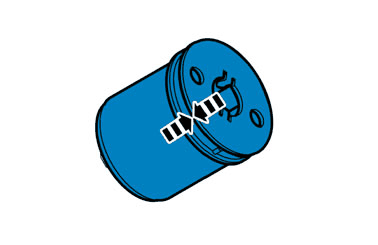

GLL158889Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.
