Bushing Front Lateral Link [2016-2018]: Removal

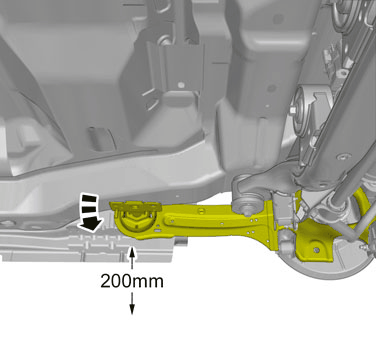

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

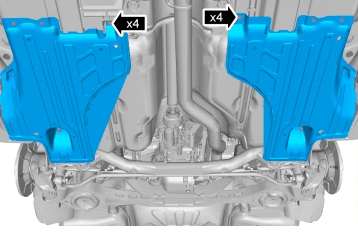

Remove the following items:

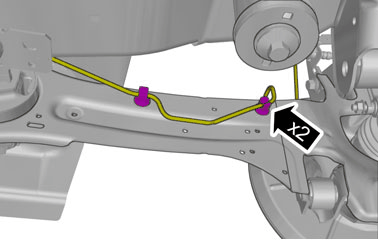

1. Torque:  Tie rod to subframe, 130Nm
2. Torque:  Tie rod to longitudinal stay, 130Nm

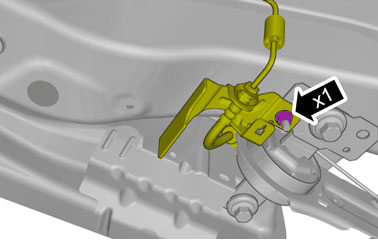

3. Torque:  M6, 10Nm

VEHICLES WITH LOAD-LEVELING SHOCK ABSORBERS

Courtesy of VOLVO CARS CORPORATION

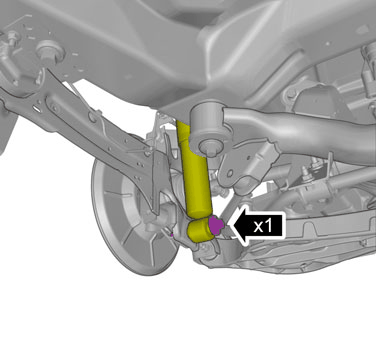

Torque:  Rear shock absorber to wheel knuckle (Nivomat), 280Nm

VEHICLES WITHOUT LOAD-LEVELING SHOCK ABSORBERS

Courtesy of VOLVO CARS CORPORATION

Torque:  Rear shock absorber to wheel knuckle, 175Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

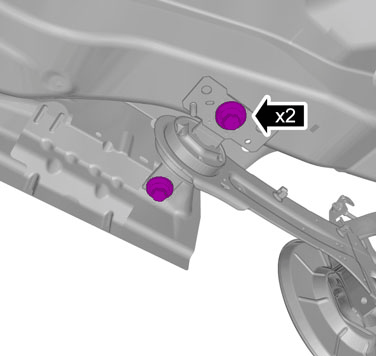

Torque:  Wheel knuckle rear to body, 180Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

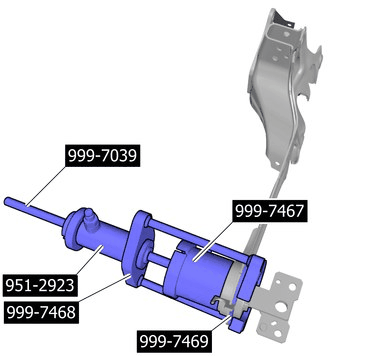

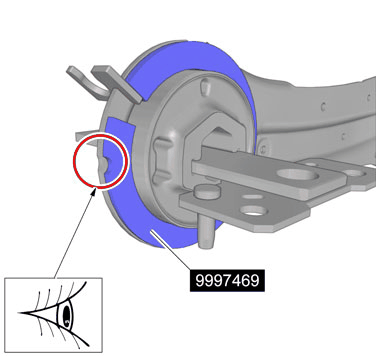

Special Tool: 999 7469

Courtesy of VOLVO CARS CORPORATION

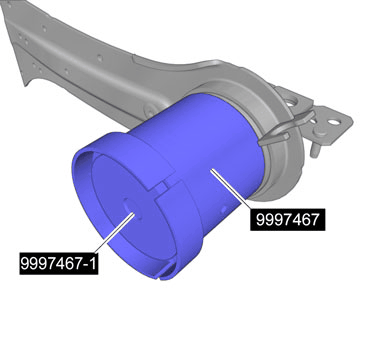

Special Tool: 999 7467

Courtesy of VOLVO CARS CORPORATION
