Bushing Front Lateral Link [2016-2018]: Installation

GLL1029452Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7467

GLL1001370Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the component is positioned correctly.

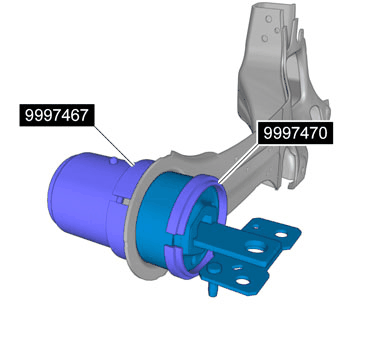

GLL1003347Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7470   and Special Tool: 999 7467

GLL1010031Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2923  , Special Tool: 999 7468   and Special Tool: 999 7039

Use:  Hydraulic press

To install, reverse the removal procedure.
