Front Strut And Spring Assembly [2017-2018, B4204T11, TG-81SC AWD]: Removal

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Torque:  Front stabilizer bar link to strut and spring assembly, 55Nm

Courtesy of VOLVO CARS CORPORATION

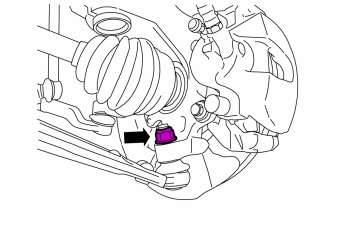

Torque:  Ball joint to wheel knuckle, 110Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7310

Courtesy of VOLVO CARS CORPORATION

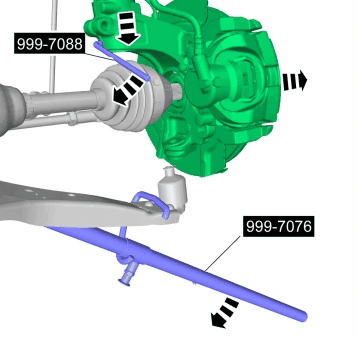

Special Tool: 999 7088   and Special Tool: 999 7076

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  Strut and spring assembly to strut and spring assembly turret, 30Nm
