Front Control Arm [2017-2018 | 2016, B5254T12, TF-80SC AWD]: Removal

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

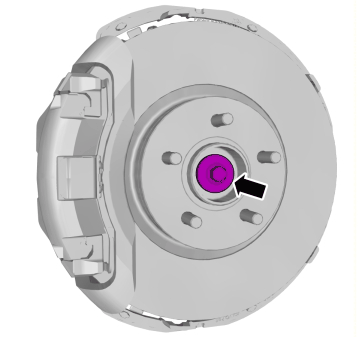

Torque:Driveshaft to wheel hub (front),

• Stage 1: 35Nm
• Stage 2: 90°

Courtesy of VOLVO CARS CORPORATION

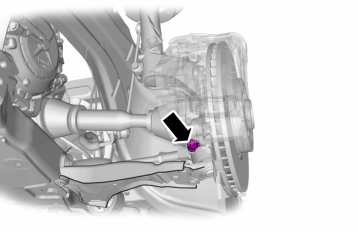

Torque:  Ball joint to wheel knuckle, 110Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7076

Courtesy of VOLVO CARS CORPORATION

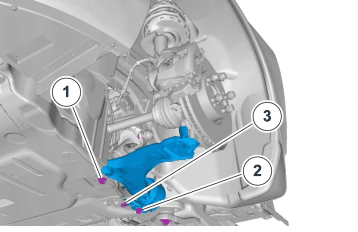

Remove the following items:

1. Torque:Lower arm front to subframe (front mounting),

   • Stage 1: 140Nm
   • Stage 2: 45°
2. Torque:  Lower arm front to subframe (rear mounting), 175Nm
3. Torque:  Lower arm front to subframe (rear mounting), 175Nm
