Steering Wheel [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove airbag driver's side, refer to: DRIVER'S AIRBAG

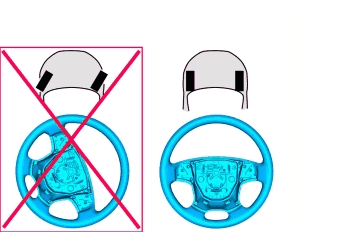

GLL155756Courtesy of VOLVO CARS CORPORATION

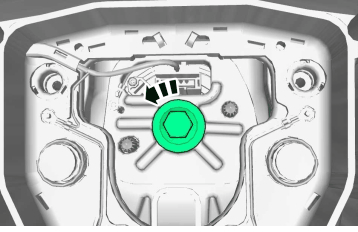

GLL155757Courtesy of VOLVO CARS CORPORATION

Torque:  Steering wheel to steering column (center screw), 48Nm

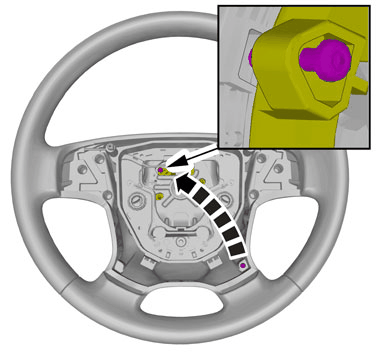

GLL172839Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the steering wheel is not rotated while the clockspring is locked in position.

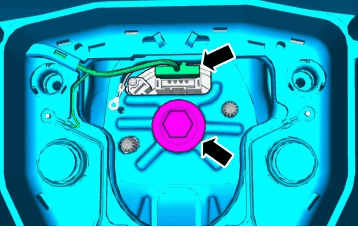

GLL155759Courtesy of VOLVO CARS CORPORATION

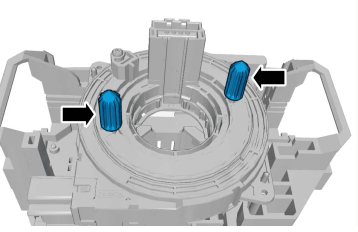

GLL155760Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the clockspring pins are not bent or damaged.
