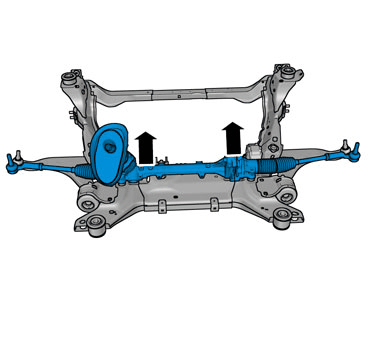

Steering Gear [2017, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the road wheels are in the straight ahead position.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the ignition key is removed.

CAUTION:

Make sure that the steering column lock is engaged.

VEHICLES WITHOUT STEERING COLUMN LOCK

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

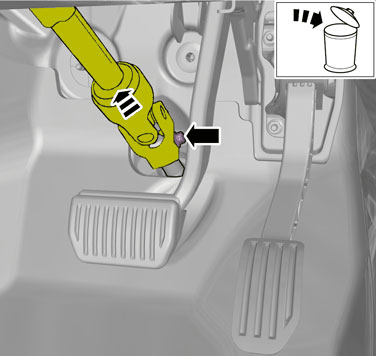

Remove the screw.

Torque: steering column to steering gear (steering shaft joint), 25Nm

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Remove the screws.

On both sides.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the ball joint ball does not rotate.

Remove the nut.

Torque: Tie rod end to wheel knuckle, 80Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2945

On both sides.

Courtesy of VOLVO CARS CORPORATION

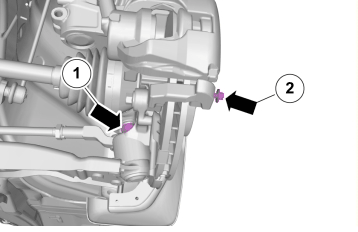

Remove the screw.

Remove the nut.

Torque: Ball joint to wheel knuckle, 110Nm
Torque:Driveshaft to wheel hub (front),
- Stage 1: 35Nm
- Stage 2: 90°

On both sides.

Courtesy of VOLVO CARS CORPORATION

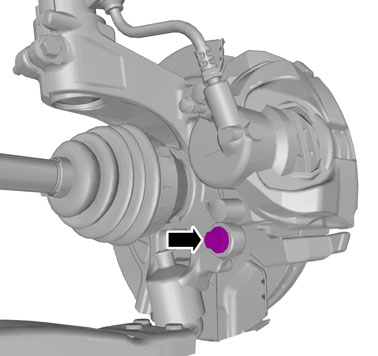

Remove the screw.

Torque: Brake caliper in steering arm, front, 120Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

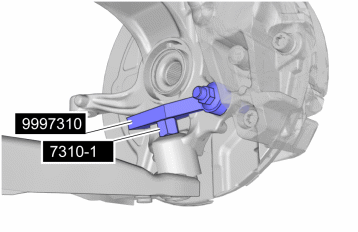

Special Tool: 999 7310

On both sides.

Courtesy of VOLVO CARS CORPORATION

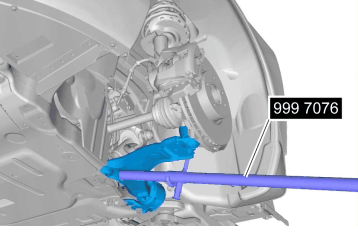

Special Tool: 999 7076

On both sides.

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Torque: Front stabilizer bar link to stabilizer bar, 70Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

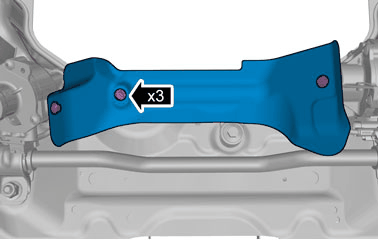

Remove the screws.

Remove collision member, refer to: COLLISION MEMBER

Courtesy of VOLVO CARS CORPORATION

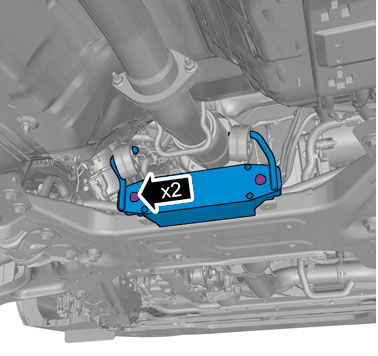

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

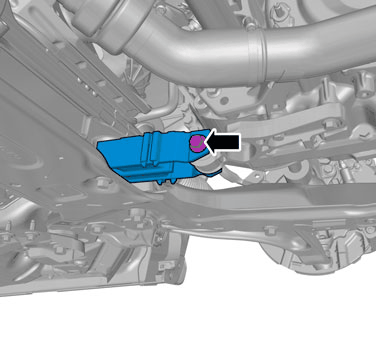

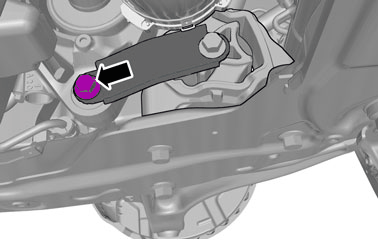

Remove the screw.

Torque: Lower torque rod rear left, to transmission bracket, 110Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Lower torque rod rear right, to Engine mount bracket, 110Nm

Courtesy of VOLVO CARS CORPORATION

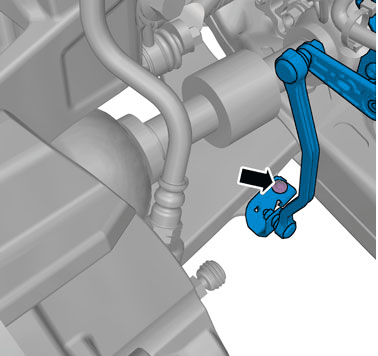

Remove the screw.

Torque: Headlamp levelling position sensor to control arm, 6Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

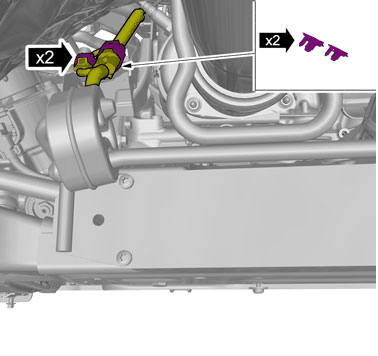

Loosen the clips.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

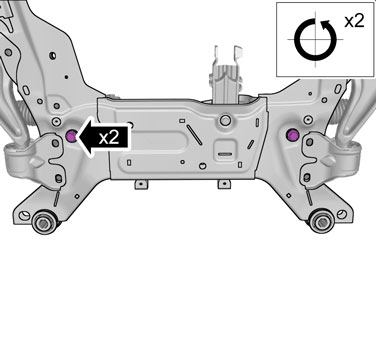

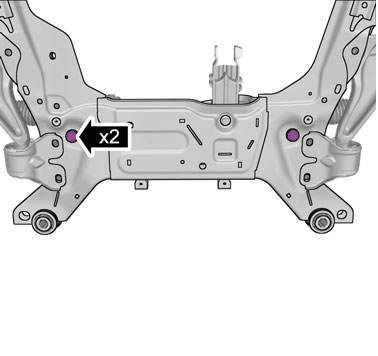

Loosen the screws.

Torque: Steering gear to subframe, 140Nm

Courtesy of VOLVO CARS CORPORATION

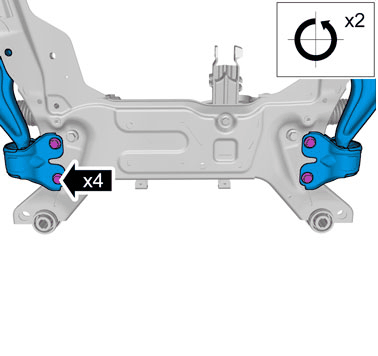

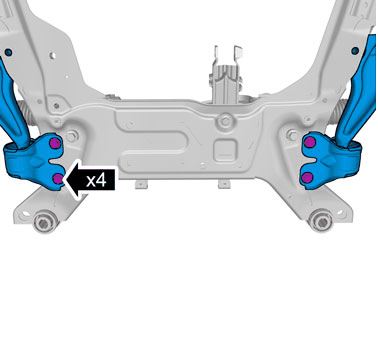

Loosen the screws.

Torque: Lower arm front to subframe (rear mounting), 175Nm

Courtesy of VOLVO CARS CORPORATION

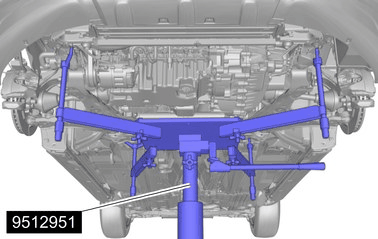

Use: Unit lift

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:Subframe to chassis (Front screws),

Stage 1: 150Nm
Stage 2: 90°

Courtesy of VOLVO CARS CORPORATION

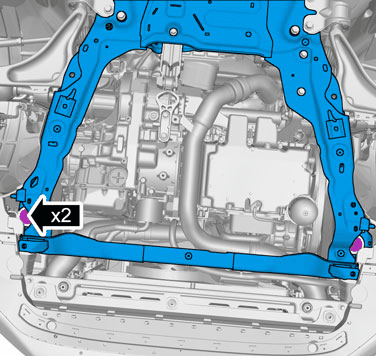

Remove the screws.

Torque: M10, 50Nm
Torque:Subframe to chassis (Rear screws),
- Stage 1: 150Nm
- Stage 2: 90°

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

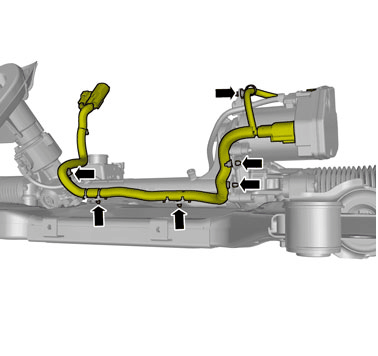

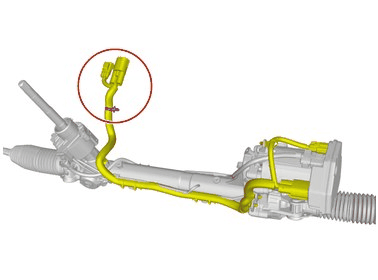

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

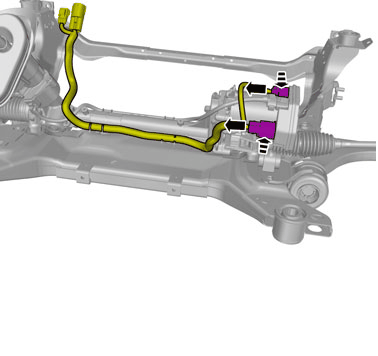

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

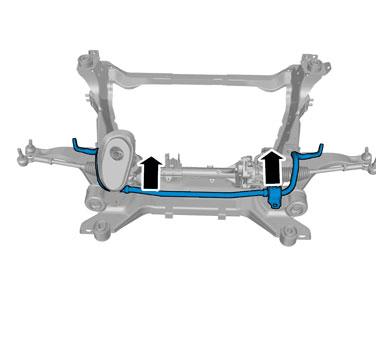

Remove the screws.

Courtesy of VOLVO CARS CORPORATION
